Description:

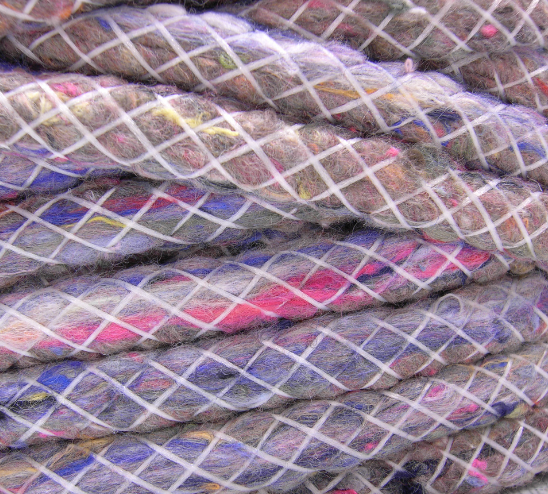

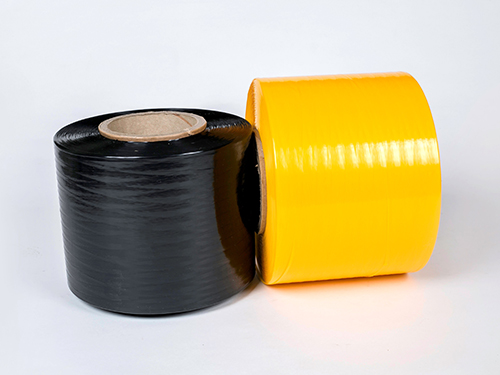

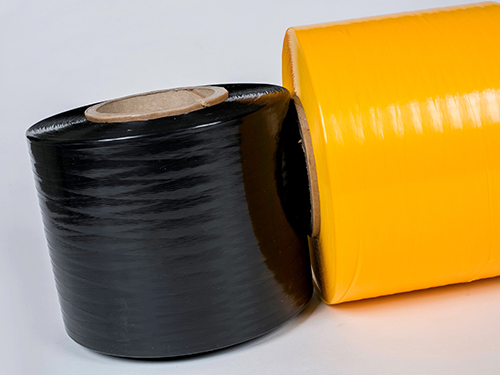

Cable Identification Tapes or Binder Tapes are used for pairing of individual cable conductors from 10 pairs to 200 pairs. Our identification tapes are offered in 11 colors and dual color combinations as well. Our mono axially stretched tapes with high tensile strength and uniform winding and even distribution of tension aids in easy removal of binder during application on SZ Stranders at high speeds and best suited for spiral helix reinforcements as well.

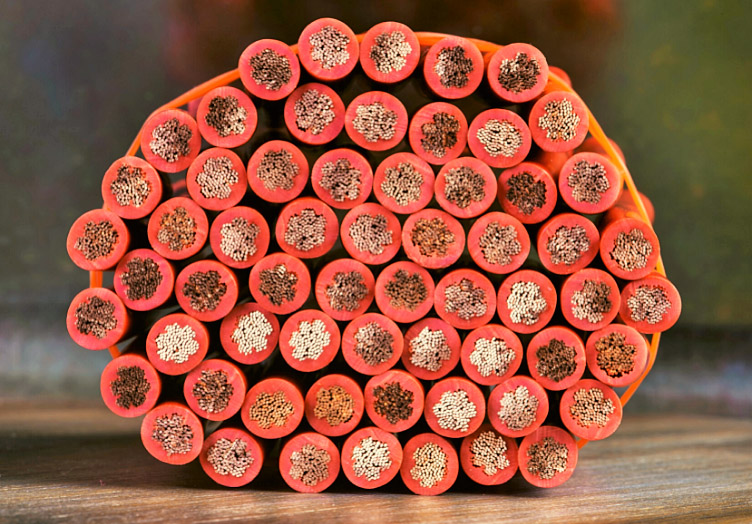

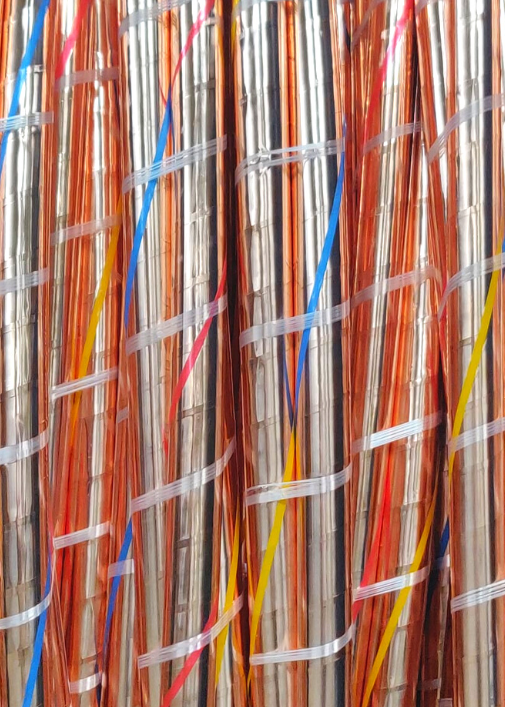

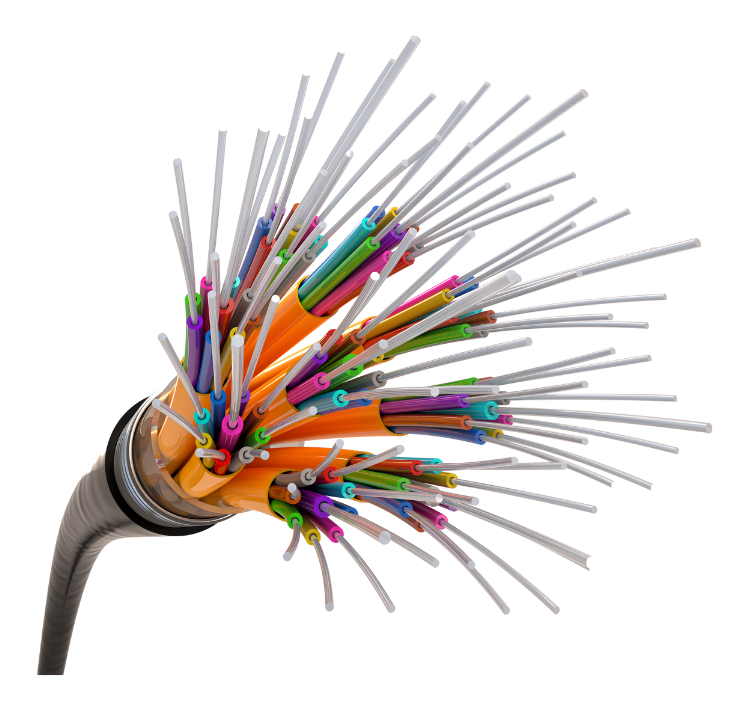

Applications: Cable identification tapes play an important role as they are used to bind the numerous wire cluster groups or pairs within the cables for easy identification, used in Copper Communication, Instrumentation, Optical Fibres and Automotive Cables.
Technical Specifications:
PARAMETERS | STANDARDS | UNIT | SPEC RANGE |
---|---|---|---|
Denier | ASTM D 1907 | Denier (D) | 600 - 3000 |
Tape Width | - | MM | 1-5 |
Tape Thickness | - | Micron | 30-70 |
GPD / Tenacity | ASTM D 2256 | - | 4.0 – 6.0 |
Elongation | ASTM D 2256 | % | 18 -25 |
Heat Shrinkage | KPPL/QC/09 | % | 0 - 5 |

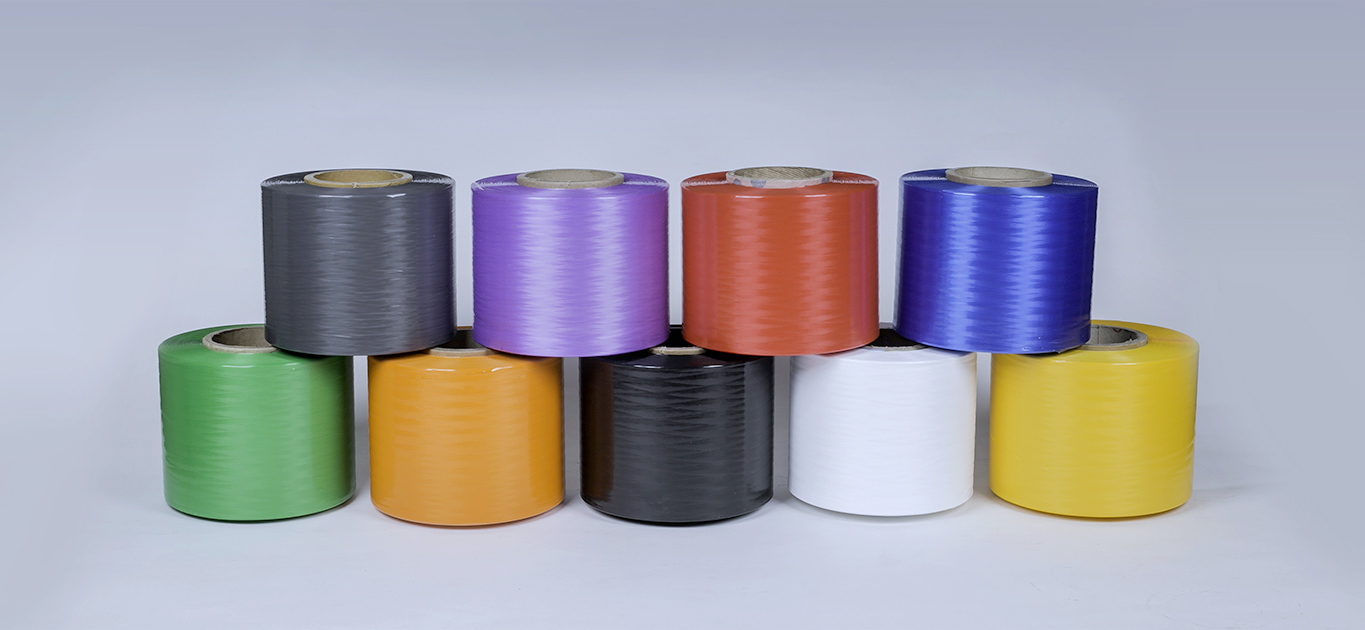

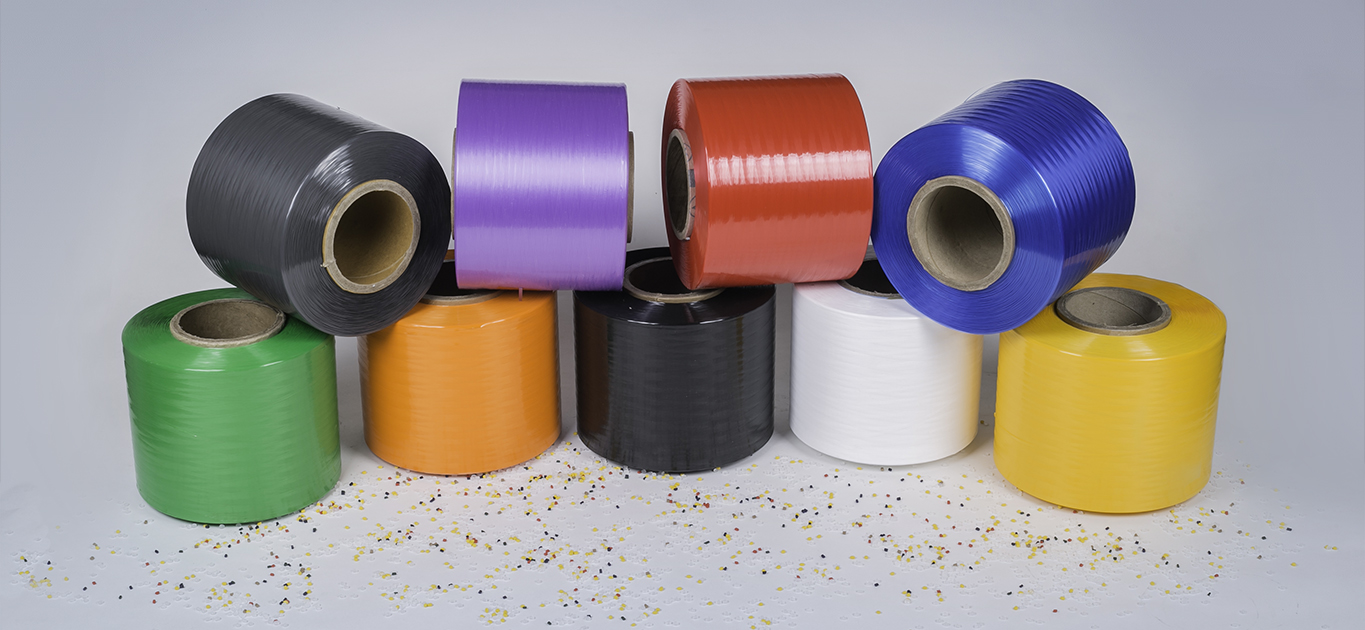

Range of Colors:
Red
RAL 2030
Orange
RAL 2008
Yellow
RAL 1018
Green
RAL 6018
Blue
RAL 5015
Black
RAL 9005
White
RAL 9010
Violet
RAL 4005
Grey
RAL 7036
Brown
RAL 8003
