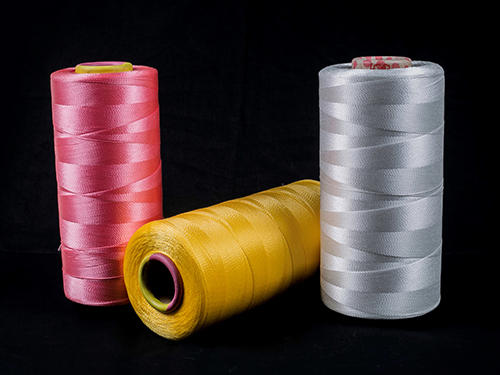

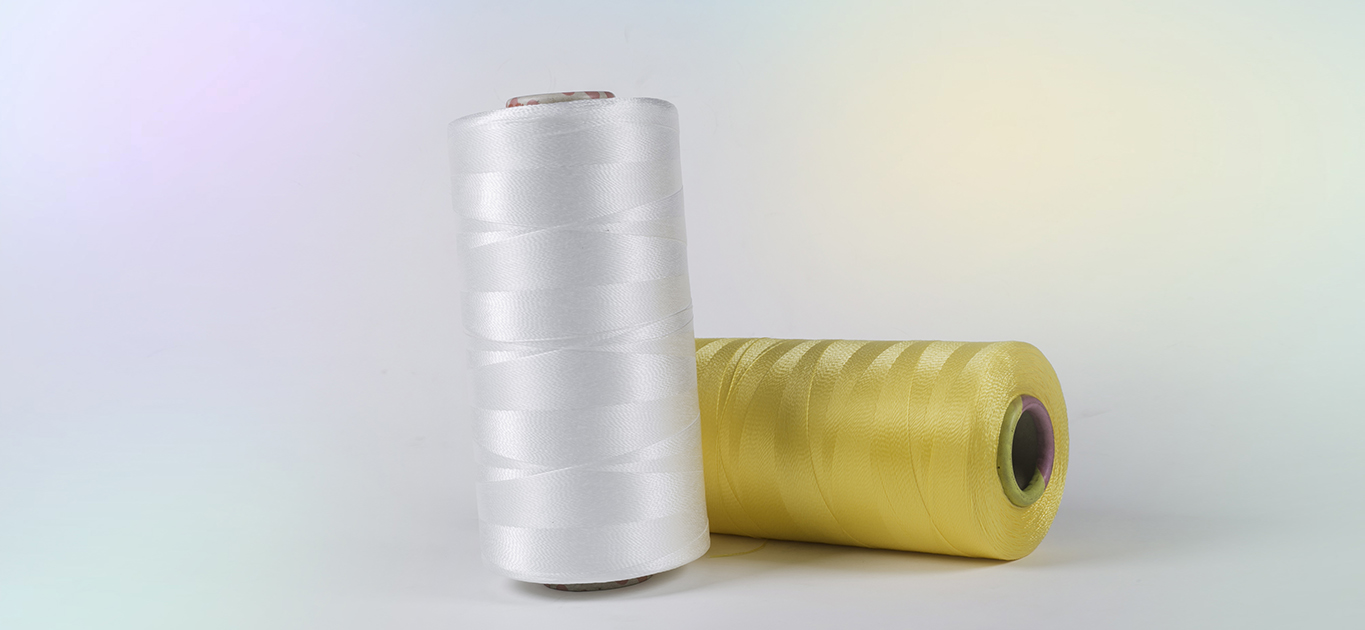

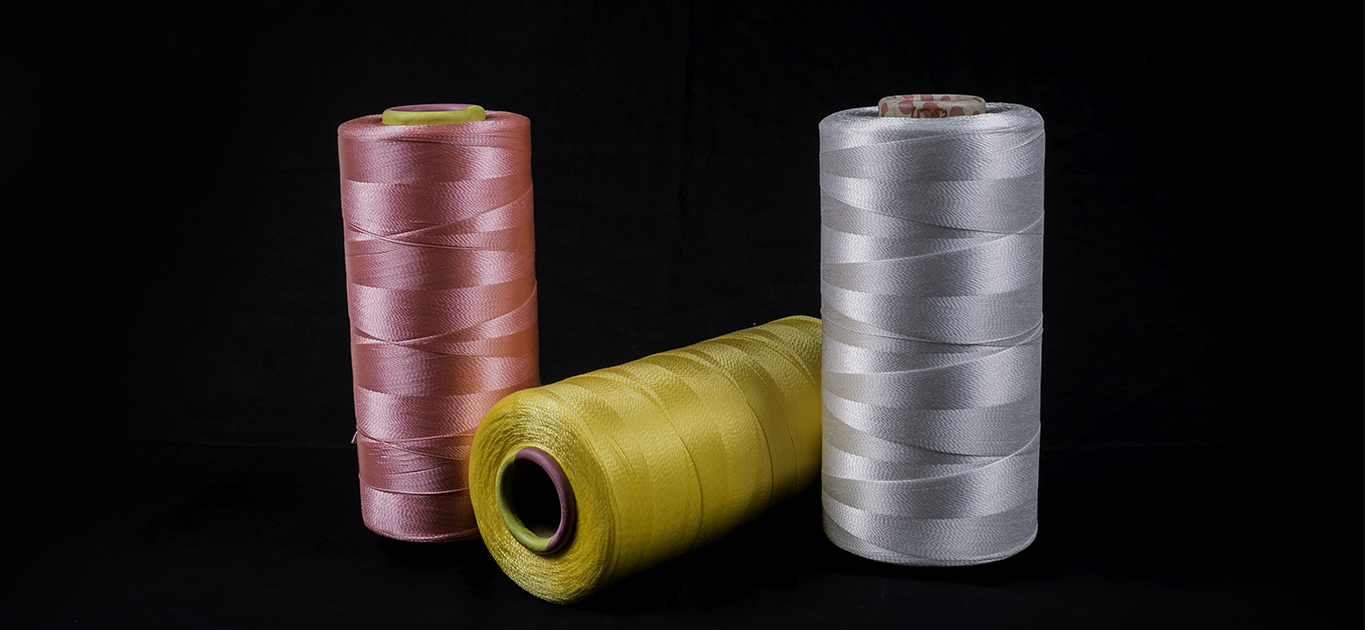

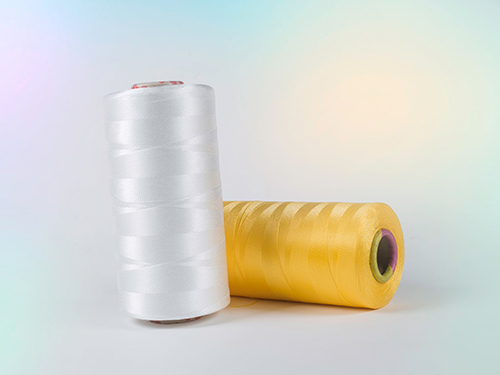

Description:

Rip Cords have a primary objective of opening up the sheath of the PE or XPLE or any other insulating material or outer sheathing. Polyamide fibers are primarily used for this purpose, which have the inherent strength and force to rip open sheathings.

Kalyani’s cords have a variety of usage depending on the kind of cable and applications.

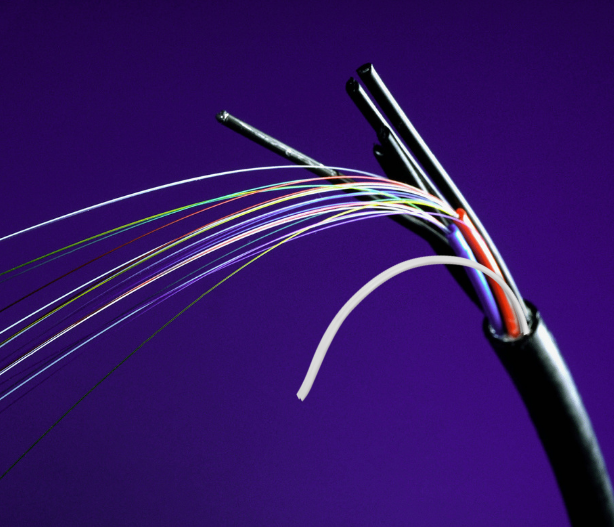

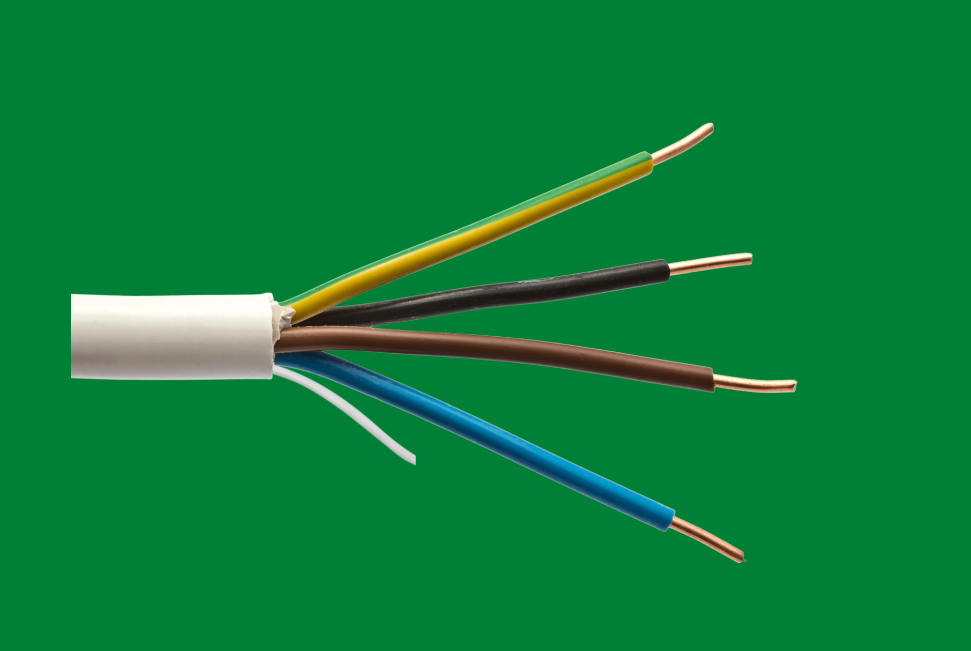

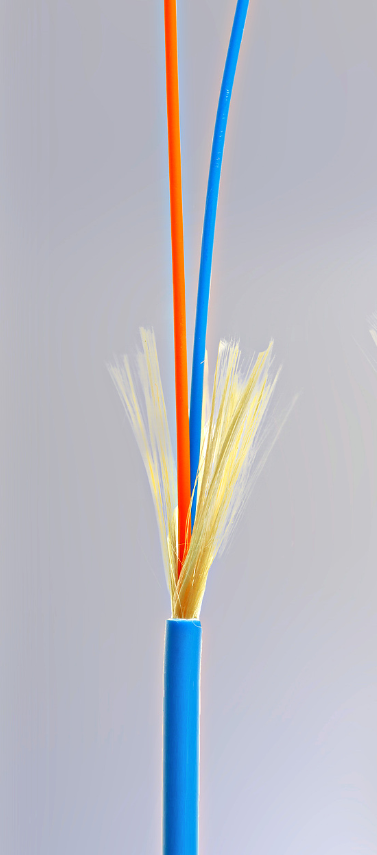

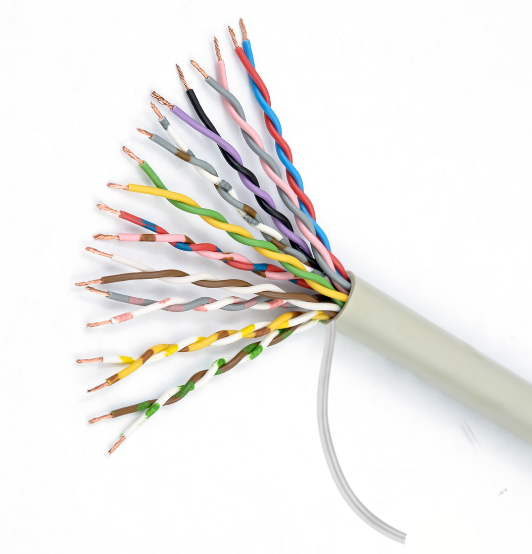

Applications: Power Cables, Instrumentation Cables, Tele Cables.


Technical Specifications:

PARAMETERS STANDARDS UNIT SPECIFICATIONS RANGE
Nylon Cord Polyester Cord
Denier ASTM D 1907 Denier 840 X 3 1000 X 3
1260 X 2 1500 X 3
1680 X 2 1000 X 2
GPD ASTM D 1907 - 7.5 7.5
Elongation ASTM D 2256 % < 20 < 20
Heat Shrinkage KPPL/QC/09 % 0 - 5 0 - 5
